Arduino Modulino Knob: The Smart Choice for Precision Control

Name: Modulino Knob from Arduino’s Plug and Make Kit
Uploaded: 2025-07-26T08:58:51+00:00
Description: You can watch how the Modulino® Knob works as part of the Plug and Make Kit in the video below.

The Arduino Modulino Knob is a compact, plug-and-play rotary encoder designed for makers, developers, and hobbyists looking to add precise control input to their Arduino or microcontroller projects. With its intuitive design, modular form factor, and seamless integration with the Arduino ecosystem, the Modulino® Knob is becoming a go-to component for building interactive interfaces in everything from robotics to smart home devices.

Whether you’re adjusting volume, navigating menus, or controlling motor speed, the Modulino® Knob offers tactile feedback and smooth rotation that make it ideal for both beginner and advanced electronics projects. To learn more about the most recent hardware releases, see our article on Latest Arduino Boards in 2025.

What is the Arduino Modulino® Knob?

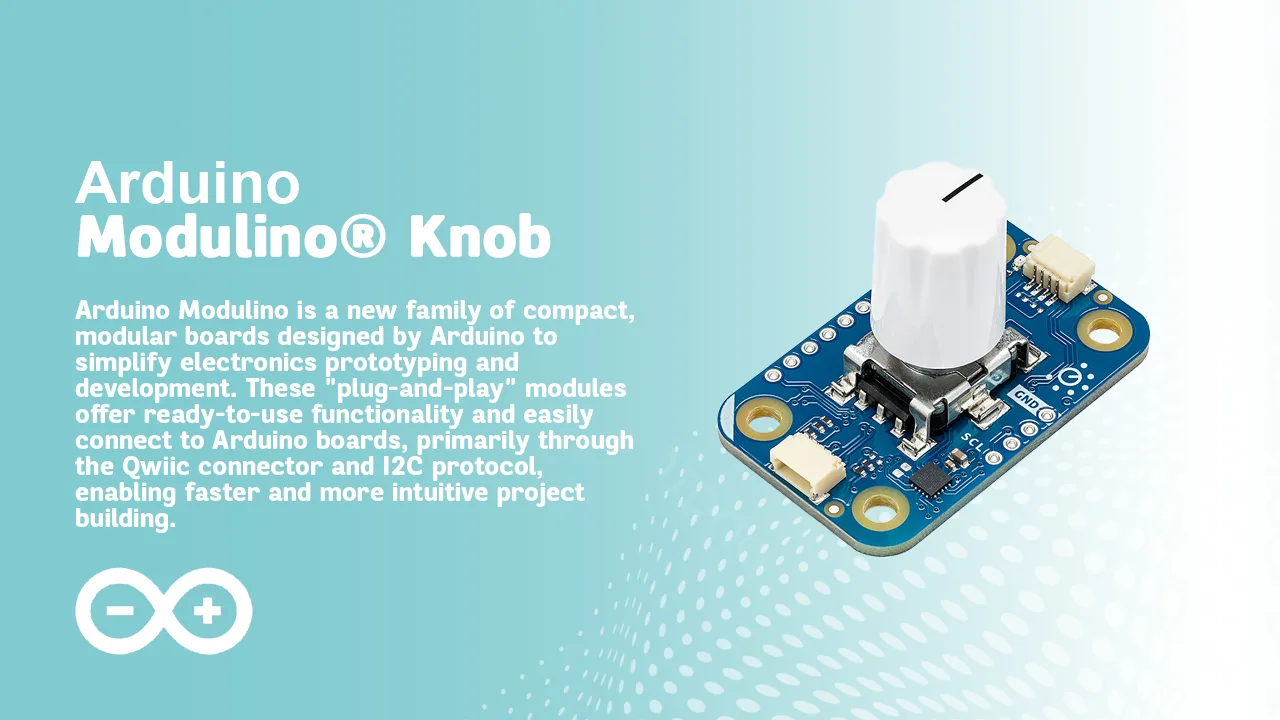

The Modulino Knob is a user-friendly rotary encoder module developed for use with Arduino boards and other development platforms. It features a high-quality rotary encoder with push-button functionality, housed in a modular casing that fits perfectly into the Modulino® system — a standardized series of Arduino-compatible modules. This system promotes a clean, stackable, and expandable hardware setup, ideal for scalable and professional prototyping.

The Knob Modulino is a plug-and-play module originally part of the Arduino Plug and Make Kit, designed to simplify prototyping and learning. It includes dual Qwiic connectors, enabling seamless daisy-chaining with the Arduino UNO R4 WiFi and other Modulino-compatible modules—no breadboard required. Perfect for students and makers, this module features a cost-effective ARM Cortex-M0 microcontroller for reliable I2C communication and precise readings from a Bourns rotary encoder.

Arduino Modulino Knob Features:

STM32C011F4 microcontroller handling I²C communications and optional reprogramming
Operates at 3.3V via the Qwiic interface, supports 2.0V to 3.6V supply range internally
SWD interface onboard for firmware customization, plus optional UART lines
Plug-and-play connectivity
Robust, ready-to-use design
Effortless expansion
Seamless Arduino ecosystem integration
Built-in RGB LED
I²C Qwiic cable
CE/RED (Europe), UKCA (UK), FCC (USA), IC (Canada), RoHS, REACH, and WEEE certified
Ideal for menu navigation, fine-tuning controls, and interactive IoT or maker projects
Rotary encoder with push-button functionality
Standardized Modulino® casing for modular design
Simple connection via digital pins
Compatible with most Arduino libraries
Durable and reliable for long-term use

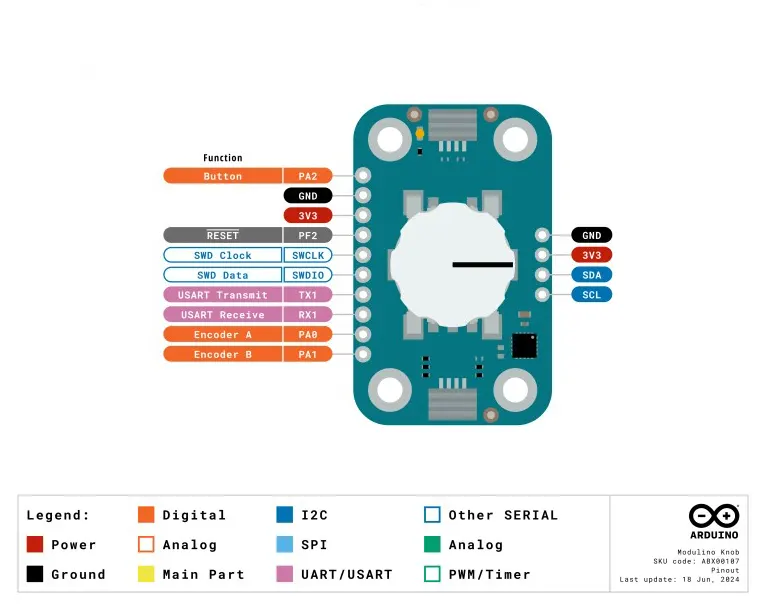

Arduino Modulino Knob pinout — Modulino Knob pinout

Arduino Modulino Knob Plug and Code

Arduino offers a powerful ecosystem of tools to help you get started fast. With the official Modulino libraries, integrating modules like the Modulino Knob or Buzzer into your Arduino sketches takes just a few lines of code. Comprehensive documentation is available in the Modulino Library Docs, and the official Modulino GitHub repository includes ready-to-use example code to accelerate your development.

👉 MicroPython package on GitHub – A lightweight package to read data from Modulinos and control their behavior seamlessly using MicroPython.

👉 How to Program with Python for Electronics – Sensor Integration to IoT Guides

Arduino Modulino Knob Specifications:

STM32C011F4 MCU, handles I²C and rotary encoder logic, 2.0V to 3.6V MCU supply range
PEC11J-9215F-S0015 encoder (quadrature + push switch), 360° encoder range (continuous rotation)
I²C (Qwiic), SWD (debug/reprogram), and optional UART communication
3.3V nominal operating voltage via Qwiic
~3.4mA typical current consumption (microcontroller + rotary encoder interface)

Board dimensions
- 41mm x 25.36mm size
- 1.6mm (±0.2mm) thickness
- 4x ø3.2mm mounting holes
- 16mm vertical, 32mm horizontal hole spacing
-40°C to +85°C operating temperature range

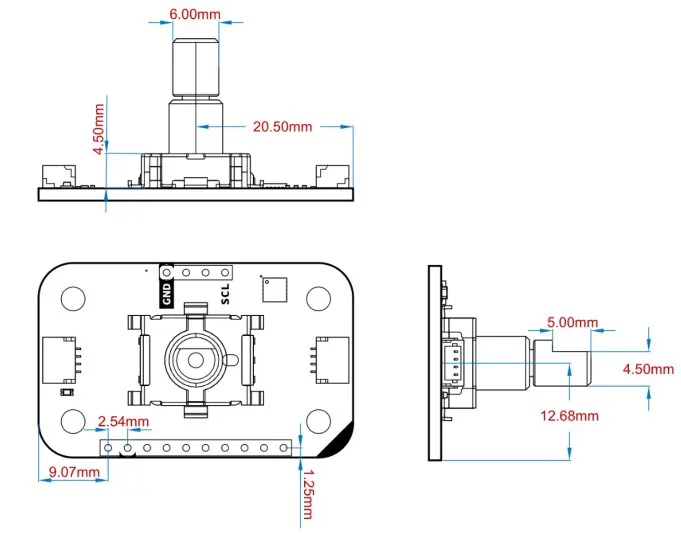

Arduino Modulino knob schematic — Modulino knob Dimensions schematic

Applications of the Modulino Knob

User Interface Controls: Scroll through menus, adjust parameters, and confirm settings with a single control unit.
Smart Devices: Use the knob in smart appliances or home automation systems.
Audio Equipment: Adjust volume or switch between tracks.
Robotics: Tune PID values or control movement interactively.
DIY Projects: Ideal for makers building custom input panels, control stations, or compact UIs.

Pros and Cons of the Arduino Modulino Knob

✅ Pros

Modular Design: Integrates seamlessly with other Modulino® components for easy expansion.
Plug-and-Play: No soldering required; quickly connects to your Arduino.
Versatile Input: Rotary motion and push-button in one component.
Sturdy Build: Built for repeated use, ideal for long-term projects.
Library Support: Compatible with many existing Arduino rotary encoder libraries.

❌ Cons

Limited to Digital Inputs: No analog rotation, which may not suit applications needing fine-grain positioning.
Requires Debouncing: May need software debouncing or libraries to handle input noise effectively.
Modulino® Compatibility: Best used within the Modulino® ecosystem—less practical for completely custom board layouts.

How to Limit Rotary Encoder Values in Arduino Using Modulino Knob

In order to configure the Modulino Knob to return a value limited between -100 and 100, the included example code provides a straightforward solution, as shown in below. The encoder’s value is automatically reset using the set() method when the defined upper or lower bounds are reached. Additionally, the built-in rotary encoder push switch allows users to manually reset the value, making this setup ideal for precise input control in embedded systems and Arduino-based projects.

Example code for Arduino IDE:

#include "Modulino.h"
ModulinoKnob encoder;

void setup( ) {
Serial.begin(19200);
Modulino.begin();
encoder.begin();
}

void loop( ) {
int value = encoder.get();

if (value > 100) { // Set limits
encoder.set(100);
} else if (value < -100) {
encoder.set(-100);
}

if (encoder.isPressed( )){ // Reset to zero when switch is pressed
encoder.set(0);
}

value = encoder.get( ); // Retrieve the latest value
Serial.println(value);
delay(500);
}

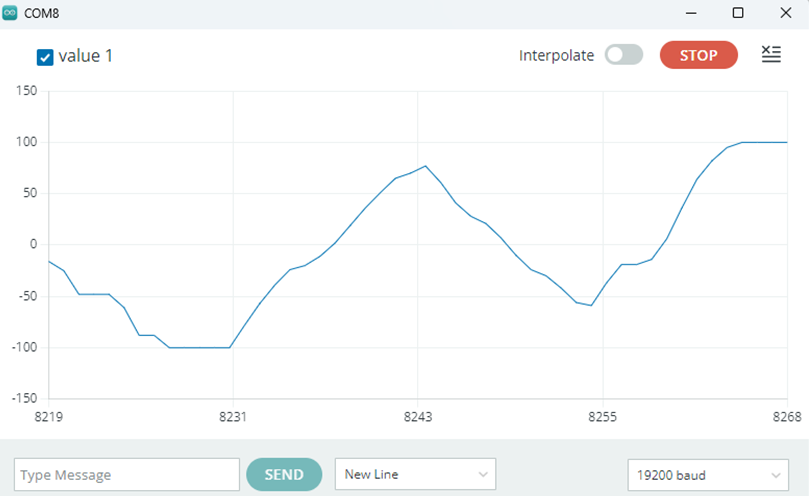

Graph below shows the encoder output limited within a range of -100 to 100. The wavy line illustrates how the values change as the encoder is turned in the Arduino IDE.

Modulino Knob I2C control Communication Protocol

The Modulino Knob communicates via the I2C protocol, following a structure similar to the Modulino Buzzer. It utilizes two distinct data frames: one frame simultaneously retrieves both the rotary encoder count and the push-button state, while the second frame is used to reset the knob to a user-defined value. This efficient I2C communication makes the Modulino Knob ideal for responsive and low-latency control in Arduino and embedded system projects.

The Modulino Knob is a compact and user-friendly evaluation board for the Bourns PEC11J rotary encoder, designed for quick integration into Arduino and microcontroller projects. Its class-based programming interface simplifies development, utilizing intuitive getters and setters to access and modify values stored in the onboard ARM Cortex-M0 microcontroller. Ideal for prototyping rotary input solutions, the Modulino Knob offers reliable performance with minimal coding effort.

Modulino Knob from Arduino’s Plug and Make Kit

You can watch how the Modulino® Knob works as part of the Plug and Make Kit in the video below.

Conclusion

If you’re looking for a sleek, modular, and reliable way to introduce rotary input to your Arduino projects, the Arduino Modulino® Knob is a great solution. With its user-friendly design and broad compatibility, it’s perfect for both quick prototypes and refined builds. Just plug it in, upload your code, and take control of your project like a pro.
